Sockets, Extensions & Pedestals




We manufacture a range of standard sockets, socket extensions and pedestals that are fully compatible with our davit range which can be used for goods lifting, personnel lifting and in many cases fall protection applications. They are also suitable for a variety of structures [subject to engineer approval].

Available in aluminium, galvanised steel and stainless steel. We can also manufacture customised sockets and pedestals on request. Our socket extensions are designed to provide additional height of reach over obstacles, protective rails or walls.

We now offer a new PORTABASE Trench Mount Socket which is designed for use in trenching and shoring applications. Learn more below or contact REID for further details.




Sockets

Our sockets are fully compatible with our davit range and are suitable for a variety of structures. Available in aluminium, galvanised steel and stainless steel.

We offer sockets with two kingpin diameter sizes [65mm and 95mm] to fit our range of davits.

Our socket options include:

  • Top Mount

  • Side Mount

  • Bridge Mount

  • Flush Mount

We can also offer customised sockets, which are bespoke made and developed for non-typical installations. To discuss your requirements with us, contact us.

Socket Extensions

Our socket extensions are designed to provide additional lift height or reach over obstacles, protective rails or walls for 65mm socket/kingpin davits. Made from lightweight aluminium, with integrated carry handles they’re designed to be easy to use. Simply insert them into the existing socket and assemble a standard davit, as normal, using the extension as its socket.

Our socket extensions are available in three standard sizes:

  • 500mm

  • 800mm

  • 1100mm

They can also be customised to meet our customers’ specific requirements.

Pedestals

Our pedestal sockets are similar to top mount sockets and are manufactured from lightweight aluminium. Our pedestals are designed to provide additional lift height or reach over obstacles, protective rails or walls.

We offer pedestals that are suitable for use with our 65mm kingpin davit range.

Our pedestals are available in three standard sizes:

  • 500mm

  • 800mm

  • 1100mm

They can also be customised to meet our customers’ specific requirements.


Choose your socket



Top Mount Socket

  • Suitable for use with our full davit range

  • EN795:2012 certified and meets requirements of IRATA ICOP

  • Galvanised Steel Top Mount[STMG0500V2] meets requirements of BS8610:2017

  • Secured using 4nr. M16 anchors [not supplied]

  • Suitable for bolting into existing concrete, steel structures or through fixing in other substrates

  • Comes complete with cover





Side Mount Socket

  • Suitable for use with our full davit range

  • EN795:2012 certified and meets requirements of IRATA ICOP

  • Galvanised Steel Side Mount[SSMG0500V2] meets requirements of BS8610:2017

  • Secured using 4nr. M16 anchors [not supplied]

  • Suitable for mounting on the side of concrete or steel structures

  • A brace plate can be supplied for thin-walled concrete

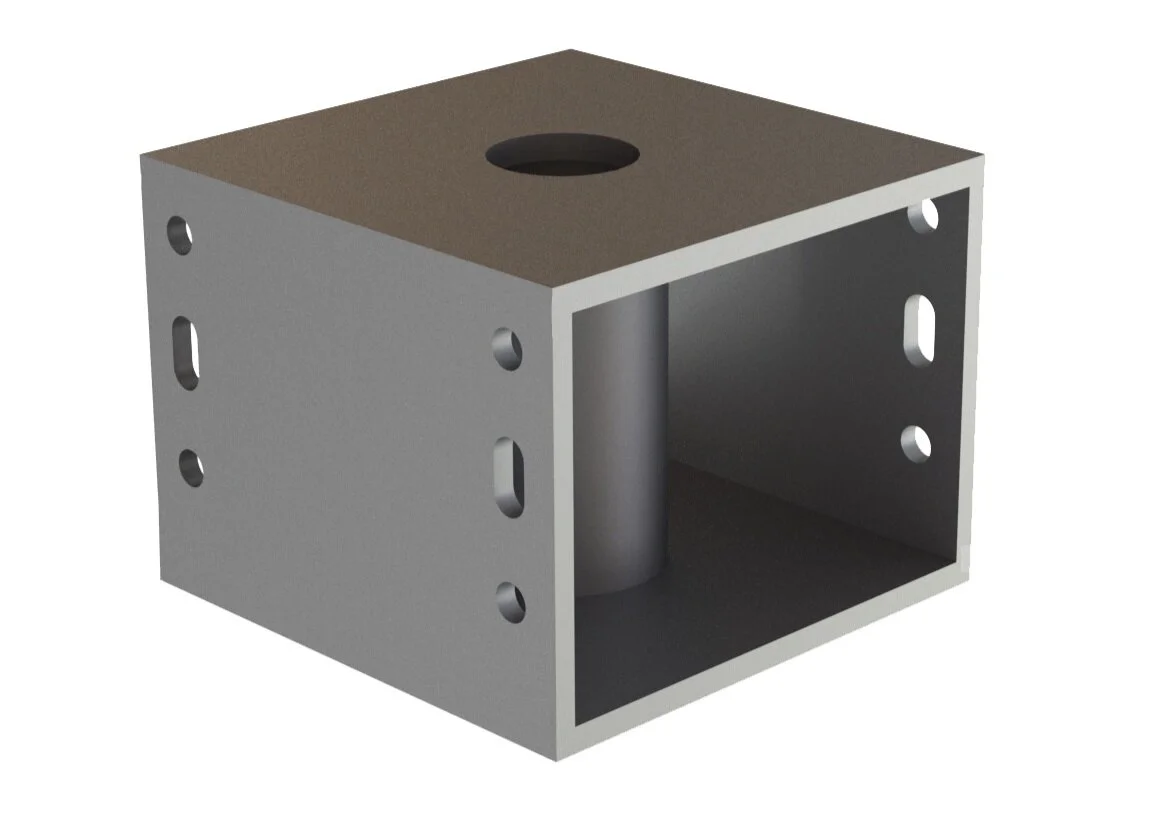

Bridge Mount Socket

  • Suitable for use with 65mm REID davits

  • EN795:2012 certified and meets requirements of IRATA ICOP

  • Secured using 4nr. M16 anchors [not supplied]

  • Suitable for bolting into steel structures

  • Designed to fit open mesh grating or flush with structural steelwork



Flush Mount Socket

  • Suitable for use with our full davit range

  • EN795:2012 certified and meets requirements of IRATA ICOP

  • Suitable for resin fixing into existing concrete

  • Complete with cover and re-bars, for casting into concrete





Socket Extensions

  • Can be used with 65mm REID davits combined with 65mm fixed sockets

  • EN795:2012 certified up to 1600mm radius

  • Integrated carry handles

  • Safe use features

  • Maintenance free

  • Manual handling compliant





Pedestals

  • Suitable for use with 65mm REID davits

  • EN795:2012 Certified up to 1600mm radius

  • Secured using 4nr. M16 or M20 anchors [not supplied]

  • Meets requirements of IRATA ICOP up to 1200mm radius

  • Safe use features

  • Maintenance free

  • Manual handling compliant



PORTABASE Saddle Mount

The PortX Saddle Mount, developed to provide access to customers in the trenching and shoring industry.

  • EN795:2012 Type B certified

  • Suitable for use with Davits up to a radius of 1200mm

  • Fall arrest capacity - 1 user

  • Personnel capacity up to 150kg*

  • Goods capacity up to 300kg*

  • Galvanised steel construction and powder coated finish

  • Designed for use in trenching and shoring applications subject to structural validation

*Dependent on Davit Operational Arc [See Assembly and Operation Guide for further information].
